研磨鋼丸
產品簡介:
Product description:

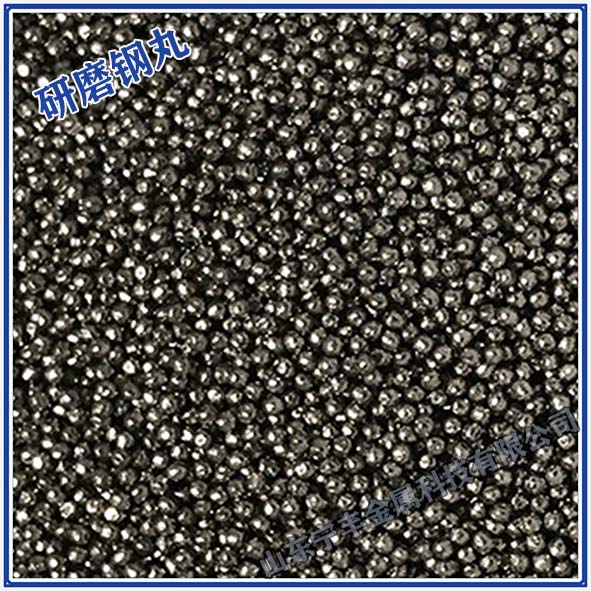

研磨鋼丸為鍛造產品,亦稱高錳鋼丸,使用高錳鋼絲高速切割成圓柱體,然后再進行導角磨圓的一種產品;無空,無龜裂,不破碎,它的消耗形狀由大到小,顆粒小到原顆粒的3/10時,才由拋丸機抽塵系統或分離設備清走,完成它整個使用壽命周期。這樣的產品同時具備鑄鋼丸和鋼絲切丸的優點:可均勻拋磨、不傷工件、不易破裂、耐磨度高循環拋磨的壽命長。研磨鋼丸是汽摩等配件精加工的主流金屬研磨材料。
Grinding steel shot is a kind of forging product, also called high manganese steel shot, which is cut into cylinder by high speed steel wire, and then the guide angle is rounded, its consumption form from big to small until the particle to the original particle 3 / 10, only by the shot blasting machine dust removal system or separation equipment to complete its entire life cycle. Such products have the advantages of both cast steel shot and steel wire cut shot: uniform polishing, no damage to the workpiece, not easy to break, wear-resistant high cycle polishing and grinding life long. Grinding steel shot is the main metal grinding material for finishing parts such as automobile and motorcycle.
制造:
Manufacturing:
用拉絲、裁切,磨圓等工藝精制而成。本產品顆粒均勻,鋼丸內部不存在氣孔,具有壽命長,拋丸時間短,實用于淬火齒輪、螺絲、彈簧、鏈條、各種沖壓件、標準件及不銹鋼等硬度高的工件,可達到表面去氧化皮,表面強化處理,光整、退漆、去腐蝕、無粉塵的噴丸加工、堅固工件表面突出金屬本色。
It is made by drawing, cutting and milling. This product uniform particles, inside the steel shot absolutely no air hole, has a long life, short shot time, practical in hardening gear, screw, spring, chains, all kinds of stamping parts, standard parts and stainless steel artifacts such as high hardness, can be up to the surface to scale, surface strengthening processing, finishing, paint, corrosion, free of dust peening processing and solid surface metal color.
用途:
PURPOSE:
產品廣泛應用于有色金屬壓鑄件、澆鑄件,鋁型材、汽車零部件、機械制造業、研磨鋼丸硬度適中,成份精純,覆蓋面大。
Products are widely used in non-ferrous metal die casting, casting, aluminum, auto parts, machinery manufacturing, grinding steel shot hardness moderate, ingredients fine, coverage.
特征:
FEATURES:
由于本身沒有一般鑄鋼丸的氣孔、異型等缺點,它的使用壽命更為長久,該產品性能完全可以替代進口產品,而價格大幅度低于進口產品,為客戶節省成本。
Because itself does not have the general cast steel ball the porosity, the abnormal shape and so on the shortcoming, its service life is longer, this product performance can replace the import product completely, and the price is much lower than the import product, saves the cost for the customer.
化驗分析報告
樣品 SAMPLES |
研磨鋼丸 GRINDING STEEL BALLS |
報告編號 REPORT NUMBER |
2020-03-16 | ||||
化學元素 CHEMICAL ELEMENTS |
C. SI. Mn. S. P |
分析日期 ANALYSIS DATE |
2020-03-16 | ||||
序號 ORDER |
結果 % RESULT PERCENT | ||||||
碳 C | 硅 Si | 錳 Mn | 硫 S | 磷 P | |||
0.45-0.85% | 0.15-0.35% | 0.30-1.30% | ≦ 0.040% | ≦ 0.040% | |||
硬度 HARDNESS |
42-52HRC | ||||||
密度 MIN DENSITY |
≧7.4g/cm³ | ||||||
金相組織 METALLOGRPHI CAL STRUCTURE |
形變珠光體 DEFORMED PEARLITE |
||||||
外觀 EXTERNAL FORM |
優 EXCELLENT |
||||||
化驗標準: JB/T8354-1996 LABORATORY STANDARD: JB/T8354-1996 |
