產品概述
Product overview

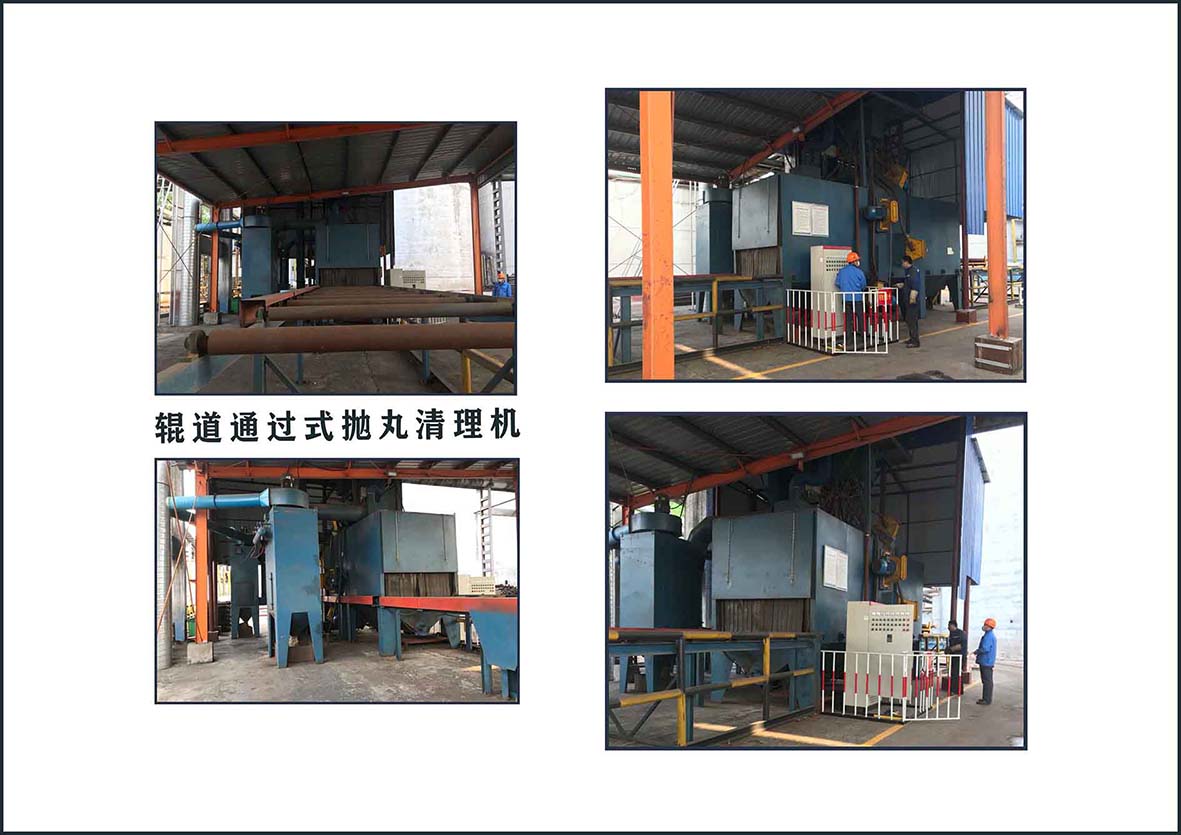

輥道通過式拋丸機能連續不間斷工作,對各類鋼材料,如鋼板,鋼材,鋼梁,型鋼,鋼管和鑄鋼件等以一種連續通過方式進行除氧化皮、清理和預處理。清理過程中由可調速輸送輥道將鋼結構件或鋼材送進清理機室體內拋射區,其周身各面受到來自不同坐標方位的強力密集彈丸打擊與摩擦,使其上的氧化皮、銹層及其污物迅速脫落,鋼材表面就獲得一定粗糙度的光潔表面,在清理室外兩邊進出口輥道裝卸工件。落入鋼材上面的彈丸與繡塵經吹掃裝置吹掃,分離后的純凈彈丸供拋丸循環使用。拋丸清理中產生塵埃,由抽風管送向除塵系統,凈化處理后的凈氣排放到大氣中。
 The roller pass type shot blasting machine can work continuously to remove oxide scale, clean and pretreat all kinds of steel materials, such as steel plate, steel, steel beam, section steel, steel pipe and steel casting in a continuous pass way. During the cleaning process, the steel structure or steel material is sent into the projectile area of the cleaning machine room by the adjustable speed conveying roller table, and all sides of the steel structure are hit and rubbed by the powerful and dense projectiles from different coordinates, so that the oxide scale, rust layer and its dirt quickly fall off, the surface of the steel to obtain a certain roughness of the smooth surface, in cleaning both sides of the outdoor entrance roller loading and unloading workpiece. The projectiles and embroidery dust falling on the steel are swept by the purging device, and the separated pure projectiles are used for the shot-blasting cycle. The dust produced in shot blasting cleaning is sent to the dust removal system by the exhaust pipe, and the clean gas after cleaning is discharged into the atmosphere.
技術參數

設備型號                           RDH0816           RDH1018             RDH1218              RDH1520             RDH2020              RDH2025              RDH2530              RDH3035


門洞尺寸mm  (寬×高)       800×1600         1000×1800          1200×1800           1500×2000           2000×2000           2000×2500           2500×3000          3000×3500


拋丸器數量(功率)             8臺×11kw           8臺×11kw           8臺×11kw             8臺×11kw              8臺×11kw             12臺×15kw            14臺×15kw         16臺×18.5kw
