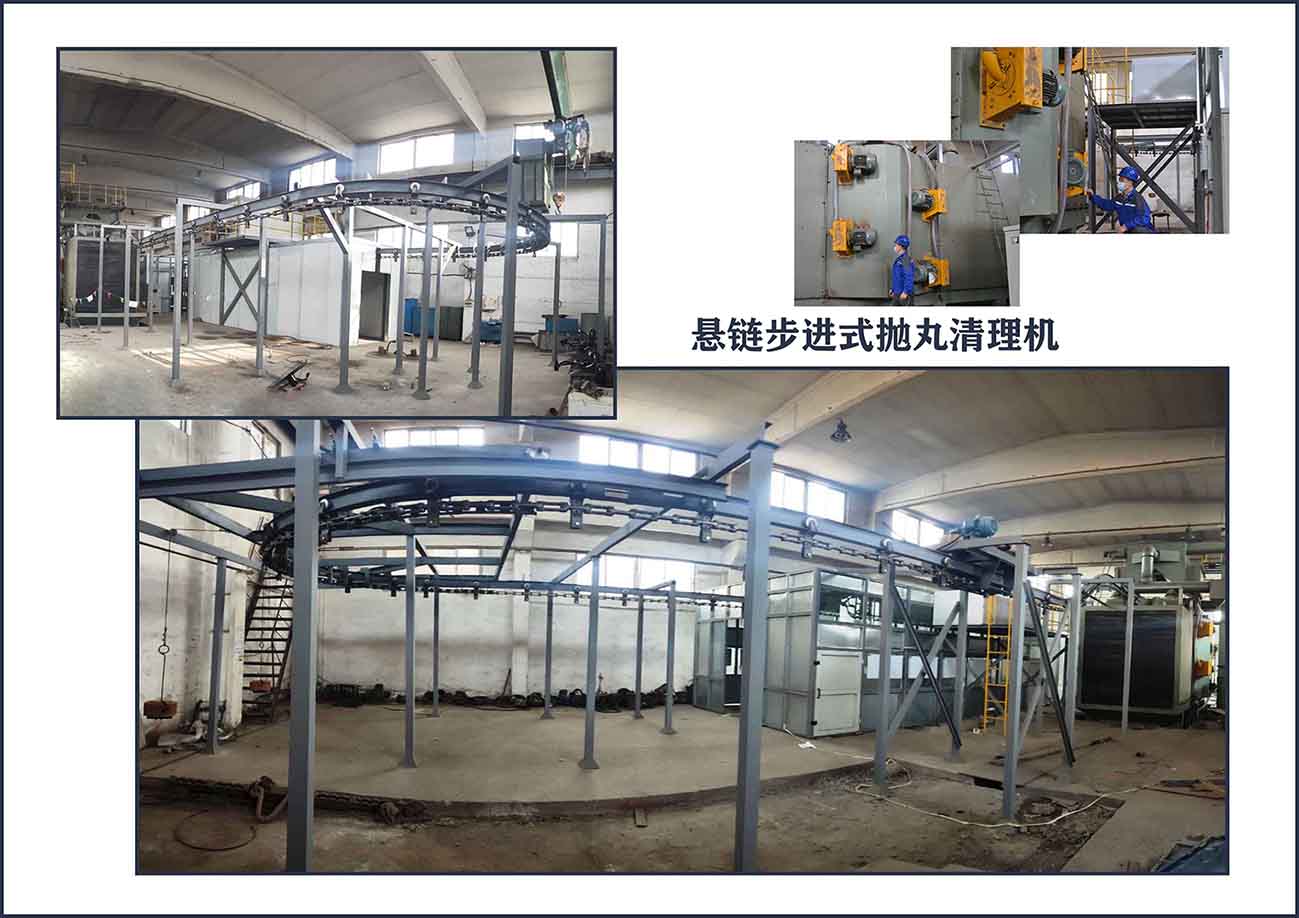

懸鏈步進式拋丸清理機
產品概述
Product overview懸鏈式拋丸機主要適用于大批量工件的處理,工件隨著懸鏈可連續運行,步進運行或采用積放式懸鏈輸送工件,使工件在裝卸以及拋丸區分別處于停止狀態,實現定點裝卸和定點拋丸工區。設備可根據工件要求定制不同型號、尺寸的設備。
The hanging chain type shot blasting machine is mainly suitable for handling large quantities of workpieces, the workpieces can run continuously along the hanging chain, step-by-step or adopt the accumulating and releasing type hanging chain to transport the workpieces, so that the workpieces can be stopped in the loading, unloading and shot blasting areas respectively, realization of fixed-point loading and unloading and fixed-point shot blasting area. Equipment can be customized according to the requirements of the workpiece different models, sizes of equipment.
Q38/Q48/Q58系列懸鏈通過式拋丸機隨吊鏈移動方式,可分為連續式、步進式、積放式。本機適合多品種、大批量鑄鐵件、鑄鋼件、鍛件及鋼結構件的表面清理及拋丸強化,如發動機缸體蓋、電機殼體、輪轂、鋼瓶等清理效果尤佳。是汽車、拖拉機、柴油機、電機、閥門等行業的理想選擇。
Q38 / Q48 / Q58 series suspension chain passing type shot blasting machine can be divided into continuous type, step type and product type. The machine is suitable for surface cleaning and shot blasting of multi-variety and large-batch iron castings, steel castings, forgings and steel structural parts, especially for engine cylinder cover, motor shell, wheel hub and cylinder. It is an ideal choice for automobile, tractor, diesel engine, motor, valve and other industries.
設備適用范圍:汽車制造業、航空制造業、船舶制造業、工程機械、礦山機械、鑄造業等。
EQUIPMENT SCOPE OF APPLICATION: Automobile Manufacturing Industry, aviation manufacturing industry, shipbuilding industry, construction machinery, mining machinery, foundry industry, etc. .
技術參數
設備型號 單鉤吊重 清理工件尺寸 生產效率(鉤/小時) 形式
Q382 200 Φ500×1200 30-60 連續式
Q383C 250 Φ700×1200 30-60 連續式
Q384C 400 Φ700×1500 40-70 連續式
Q483 300 Φ1060×1200 10-25 步進式
Q485 500 Φ1200×1500 10-25 步進式
Q488 800 Φ1400×1800 10-25 步進式
Q583 300 Φ1000×1500 30-60 積放式
Q585 500 Φ1200×1500 30-60 積放式
Q588 800 Φ1300×2400 30-60 積放式
