產品概述
Product overview

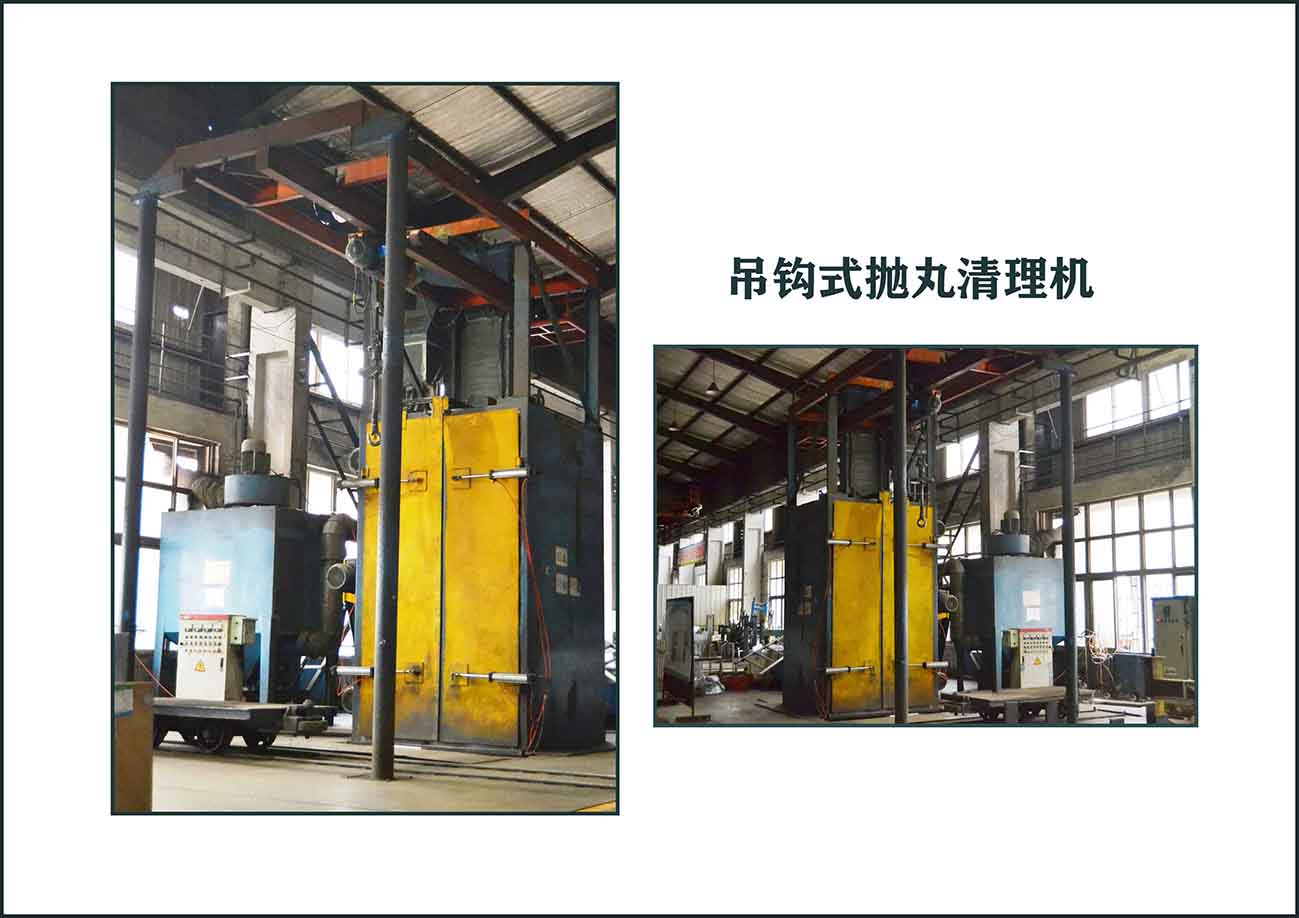

吊鉤式拋丸機分單鉤式和雙鉤式兩種主要形式,適用于各行業中小型鑄件、鍛件、焊接件、熱處理件的表面清理或強化。采用備受歡迎的無地坑結構形式,結構緊湊、安裝方便、運轉平穩、生產率高等特點。
Hook type shot blasting machine divided into single hook type and double hook type two main forms, suitable for small and medium-sized castings, forgings, welding parts, heat-treated parts of the surface cleaning or strengthening. It is characterized by compact structure, convenient installation, stable operation and high productivity.
吊鉤式拋丸清理機旨在清潔懸掛在高架傳送帶上的零件,并用于鑄造或不可翻倒的大型零件。室體采用全封閉結構,無彈丸飛濺現象,室內采用耐磨合金鑄鐵護板防護。采用電動葫蘆實現工件的裝卸、升降和行走;采用自轉裝置實現工件在室內的正反旋轉。

Hook type shot blasting machine is designed to clean the parts hanging on the overhead conveyor belt, and used for casting or non-tipping large parts. The chamber is completely closed structure, no bullet splash phenomenon, indoor wear-resistant alloy cast iron plate protection. An electric hoist is used to load, unload, lift and walk the workpiece, and a self-rotating device is used to rotate the workpiece in the room.
設備適用范圍:鋼結構件、鑄件、鋁合金件及其它零件的表面清理和強化,目前廣泛用于鑄造、鍛壓、建筑、鋼鐵、船舶等行業。
EQUIPMENT SCOPE OF APPLICATION: Steel structure, casting, aluminum alloy and other parts of the surface cleaning and strengthening, currently widely used in casting, forging, construction, steel, shipping and other industries.
  技術參數

  設備型號        單位               Q376              Q378             Q379              Q3710               Q3720                Q3730            Q3740           Q3780           Q37100

  單鉤吊重         kg                 600                1000             1000                1000                  2000                  3000               5000             10000              10000
  拋丸量          kg/min        2×150             2×200           2×200            2×200                 3×220               3×250             6×250           8×250             6×270
  清理工件尺寸 mm     Φ600×1200   Φ800×1500   Φ900×1600    Φ1000×2000    Φ1200×2200    Φ400×2700   Φ1600×3000   Φ2500×5100   Φ2800×5400
  總功率            Kw            ≈23             ≈34             ≈34               ≈48                  ≈60                 ≈67             ≈80              ≈150            ≈180
